Autel MaxiCOM MK908 Pro Auto Diagnostic & Programming Tool with J2534 ECU Coding Adapter (Advanced Version Of Autel MS908P)AM508 [EU&US Stock]

Autel MaxiCOM MK908P, as a high-end vehicle diagnostic tool developed from Autel, AUTEL MaxiCOM MK908 Pro featuring the complete diagnostic functions including ECU programming for BM-W and Benz etc., and the advanced configuration (Android 4.4.2 KitKat OS, 8.0 Megapixel rear cam, ultra-clear 10.1 inches LED screen)

MK908P is the ideal scanner for professional mechanics and auto repair stores to perform all-around fixes and comprehensive tests.

Combined with the MaxiVideo MV105, the digital inspection camera,

Mk908P ensures the perfect diagnostic solution for technicians who demand unrivalled smart technology and smart repairs.

ECU PROGRAMMING:

The diagnostic tool comes with a free J2534 ECU programming device that helps Benz and BM-W users replace the existing software/firmware in the ECU, program new ECUs and fix software-controlled driving performance and emission issues.

VEHICLE COVERAGE:

The software of MK908P has a wide range of compatibility and can be used to diagnose vehicles from over 80 brands in the US, Europe and Asia. Moreover, you can get more newly added car models with the fast-release software update service.

ADVANCED HARDWARE:

MK908P, as the advanced version of MS908P, features Hexa-Core processor upgraded from Quad-Core, Android4.4.2 OS upgraded from Android4.2, the 10.1＂1920*1200 screen upgraded from 9.7＂1024*769, and 15000mAh battery capacity increased by 4000mAh.

BI-DIRECTIONAL CONTROL:

The diagnostic tool supports bi-direction control to check the vehicle operating conditions. The bi-directional control of the ECM in Component Test enables the MK908P to transmit control commands to operate the vehicle systems.

ADDITIONAL SERVICE:

The automotive scanner is designed to serve users with a rich array of easy-to-use functions and features. The MaxiFix provides you with an online troubleshooter database, and Remote Desk allows you to get help from others via TeamViewer software.

Autel MK908P Features:

J2534 ECU Programming:

The diagnostic tool comes with a J2534 ECU programming tool (also used as a VCI box) that is a SAE J2534-1 & -2 compliant pass thru reprogramming interface device.

Using the updated OEM software, it is capable of helping BM-W and Benz users replace the existing software/firmware in the Electronic Control Units (ECU), program new ECUs and fix software-controlled drivability issues and emission issues.

It supports BT and USB communications and can transmit vehicle data to the MaxiCOM display tablet with or without a physical connection.

There are 3 indicators on the J2534 ECU programming device:

Vehicle LED – Flashes green when communicating with the vehicle’s system

Connection LED – Illuminates solid green when properly connected with the display tablet via the USB cable; Illuminates solid blue when connected with the display tablet via wireless (BT) connection

Power LED – Illuminates solid green when powered on: Flashes red when system failure occurs: Illuminates amber automatically at power up when the device is performing self-test procedure

System Diagnostics:

Simply accessing the diagnostic modes via AutoVin or Control Unit, and you’re able to perform diagnosis over all the systems on the vehicle’s ECU in order to locate fault systems and retrieve DTCs.

ECU Information – provides the retrieved ECU information in detail.

Read Codes – displays detailed information of DTC records retrieved from the vehicle control module.

Erase Codes – erases DTC records and other data from the ECM.

Live Data – retrieves and displays live data and parameters from the vehicle’s ECU.

Active Test – provides specific subsystem and component tests.

Accesses the Special Functions:

The diagnostic tool is specially designed with the Service section to provide you with quick access to the vehicle systems for various scheduled service and maintenance performances.

It provides component adaptation or variant coding functions for custom configurations, and also allows you to reprogram adaptive values for certain components after making repairs.

The most commonly performed service functions include:

Oil Reset Service: Allows you to perform reset for the Engine Oil Life system, which calculates an optimal oil life change interval depend on the vehicle driving conditions and climate.

EPB Service:

Helps maintain the electronic braking system safely and effectively, deactivating and activating the brake control system, assisting with brake fluid control, opening and closing brake pads, and setting brakes after disc or pad replacement, etc.

SAS Service:

Allows you to perform calibration for the Steering Angle Sensor, which permanently stores the current steering wheel position as the straight-ahead position in the steering angle sensor EEPROM.

DPF Service:

Allows you to carry out numerous functions to the Diesel Particulate Filter system.

TPMS Service:

Allows you to quickly look up the tire sensor IDs from the vehicle’s ECU, as well as to perform TPMS programming and reset procedures after tire sensors are replaced.

IMMO Service:

Programs a new anti-theft key, and performs key matching when the ignition switch, the combined instrument panel, ECU, BCM, or the remote control battery is replaced.
……

Coding:

The Coding function is used to re-flash the vehicle control modules, it allows you to update the computer software on the vehicle to the latest version, as well as to reprogram adaptive data for certain components after making repairs or replacements, providing ways for the issues of Drivability, Fuel Efficiency, Power Loss, Fault Codes, Durability of Mechanical Parts.

The Differences Between MK908P and MS908P:

The MK908P is an upgraded version of MS908P, and the difference between them is that MK908P is equipped with more advanced hardware.

Processor:

The MK908P is processed by the powerful Samsung Exynos hexa-core Processor (1.3GHz Quad-core ARM Cortex-A7 + 1.7GHz Dual-core ARM Cortex-A15) while the MS908P is using the Samsung Exynos Quad-Core Processor 1.4GHz.

Operating System:

Diagnostic scan tool MK908P features Android4.4.2, KitKat operating system that is upgraded from Android 4.0, Ice Cream Sandwich.

Memory:

The MK908P is equipped with 2GB RAM & 64GB on-board Memory, but MS908P only has 32GB on-board memory.

Screen Size & Pixel:

The Automotive diagnostic scanner MK908P features 101.1 inches LED screen with 1920*1200 resolutions that provides a better user experience than MS908P’s 9.7 inches screen with 1024*768 resolutions.

Camera:

The camera of MK908P is designed to provide a more detailed images using 8.0 Megapixel, AF with Flashlight.

Battery Capacity:

For a tablet diagnostic tool that is equipped with built-in battery, the battery life greatly affects the integrity of the diagnosis and the user experience. Compared to the MS908P, the MK908P extends the usage time by increasing battery capacity by 4000mAh.

Additional Features and Functions:

To well serve the users, the diagnostic tool is equipped with rich array of features and functions in addition to the Diagnostic and Service functions,including Remote Desk, MaxiFix, Shop Manager, Digital Inspection, MaxiScope, etc.

Remote Desk:

With the simple, fast and secure remote control interface, you can receive ad-hoc remote support from Autel’s support center, colleagues, or friends, by allowing them to control your MaxiCOM tablet on their PC via the TeamViewer software.

MaxiFix:

This is an additional feature in the cloud which enables users to network and access a database of procedures, repair and diagnostic tools. You are able to interact with fellow technicians and share knowledge via MaxiFix.

Digital Inspection & MaxiScope:

The diagnostic scan tool can also be used in conjunction with the automotive oscilloscope Autel MP408 to perform electrical and electronic circuit testing and monitor signal activity, and it also supports performing a close vehicle inspection with the Autel digital inspection camera MV105/MV108.
.……..

Software Update:

The Autel company frequently releases new versions of the software and engine code library that makes it compatible for newly launched vehicles. If any “Unknown” or “New Vehicle Found” error is reported, the custom software updates are made available to the users in time.

Multiple Languages:

English, Simplified Chinese, Traditional Chinese, Spanish, French, German, Polish, Italian, Japanese, Korean, Dutch, Portuguese, Turkish, Swedish, Thai, Arabic, Russian

Note: Can only choose English and another language for one time, once changed cannot change anymore

Warranty:

12-month warranty for any quality problem

Tips:

If you have any questions about our product, please contact us by Email or Q&A, You can also get more details on our official website.

Specifications:

Operating System: AndroidTM 4.4.2, KitKat

Processor: Samsung Exynos hexa-core Processor (1.3GHz Quad-core ARM Cortex-A7 + 1.7GHz Dual-core ARM Cortex-A15)

Memory: 2GB RAM & 64GB On-board Memory

Display: 10.1-inch LED Screen with 1920×1200 Resolutions

Connectivity: Wi-Fi (802.11 a/b/g/n/ac); USB: 2.0; BT v.2.1 + EDR; SD Card (Support up to 32GB); HDMI

Camera (rear): 8.0 Megapixel, AF with Flashlight

Sensors: Gravity Accelerometer, Ambient Light Sensor (ALS)

Audio Input/Output:

Microphone; Dual Speakers; 3-Band 3.5 mm stereo/standard headset jack; Power and Battery;

15000mAh 3.8 V lithium-polymer battery;

Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C

Input Voltage: 12 V (9-24 V)

Power Consumption: 6.5 W

Operating Temp.: 0 to 50°C (32 to 122°F)

Storage Temp.: -20 to 60°C (-4 to 140°F)

Housing: Strong plastic housing with protective rubber boot

Dimensions (W*H*D): 312mm (12.28″) * 208mm (8.18″) * 36mm (1.41″) Weight (NW): 1.48kg (3.26lb)

Protocols:

ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code,

SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, High-speed,

Middle speed, Low speed and Singlewide CAN, GM UART,

UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939,

SAE J1708, Fault-Tolerant CAN

Vehicle List:

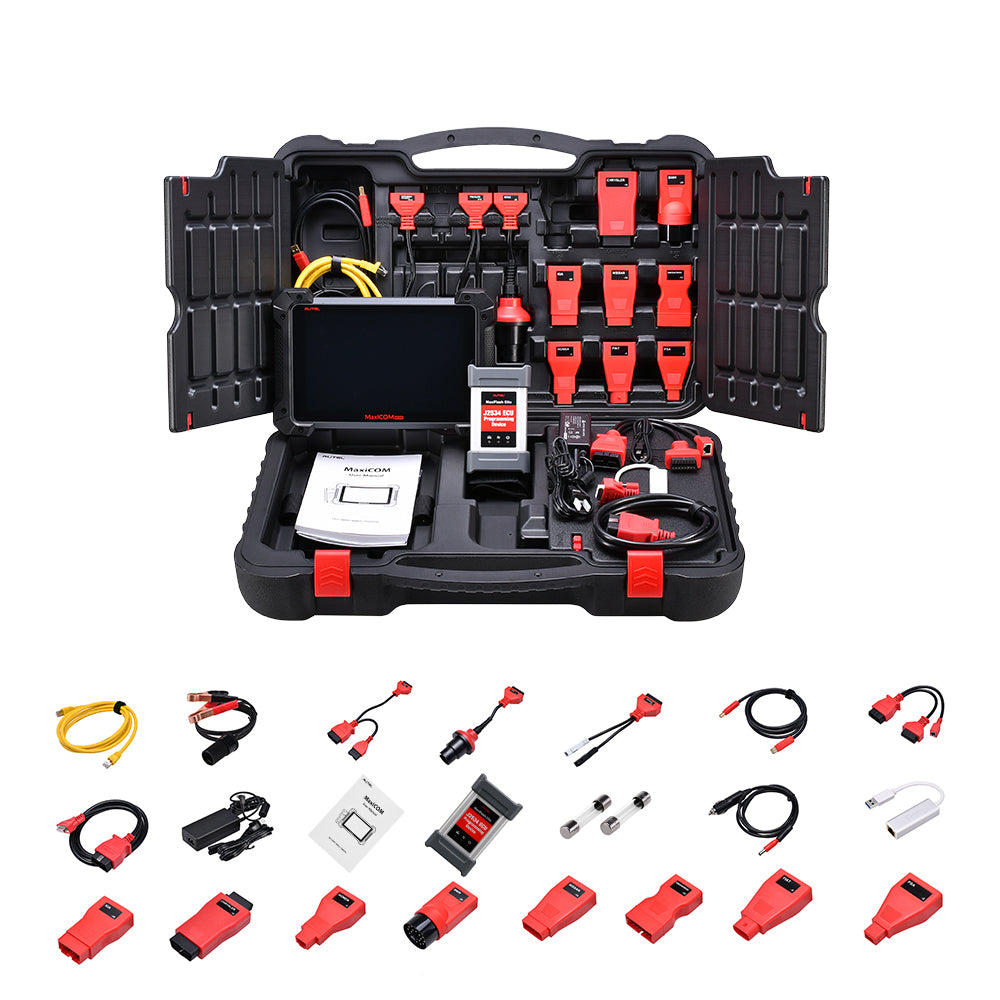

Autel MK908P Package List:

1pc x Main Unit – MK908P
1pc x J2534 Box
1pc x Main Cable
1pc x Standard 2.0 USB Cable
1pc x Mini USB Cable
1pc x AC/DC External Power Adapter
1pc x Ethernet Serial Cable
1pc x Cigarette Lighter
1pc x Clipper Cable
2pcs x Light Fuse
1pc x BM-W Ethernet Cable (Optional)
1pc x USB Ethernet Adapter
14pcs x OBDI Adapters (Benz-14; Chrysler-16; BM-W-20; Kia-20; Nissan-14; GM/Daewoo-12; Honda-3; Fiat-3; PSA-2 Benz-38; VW/Audi-2+2; Mitsubishi/Hyundai-12+16)
